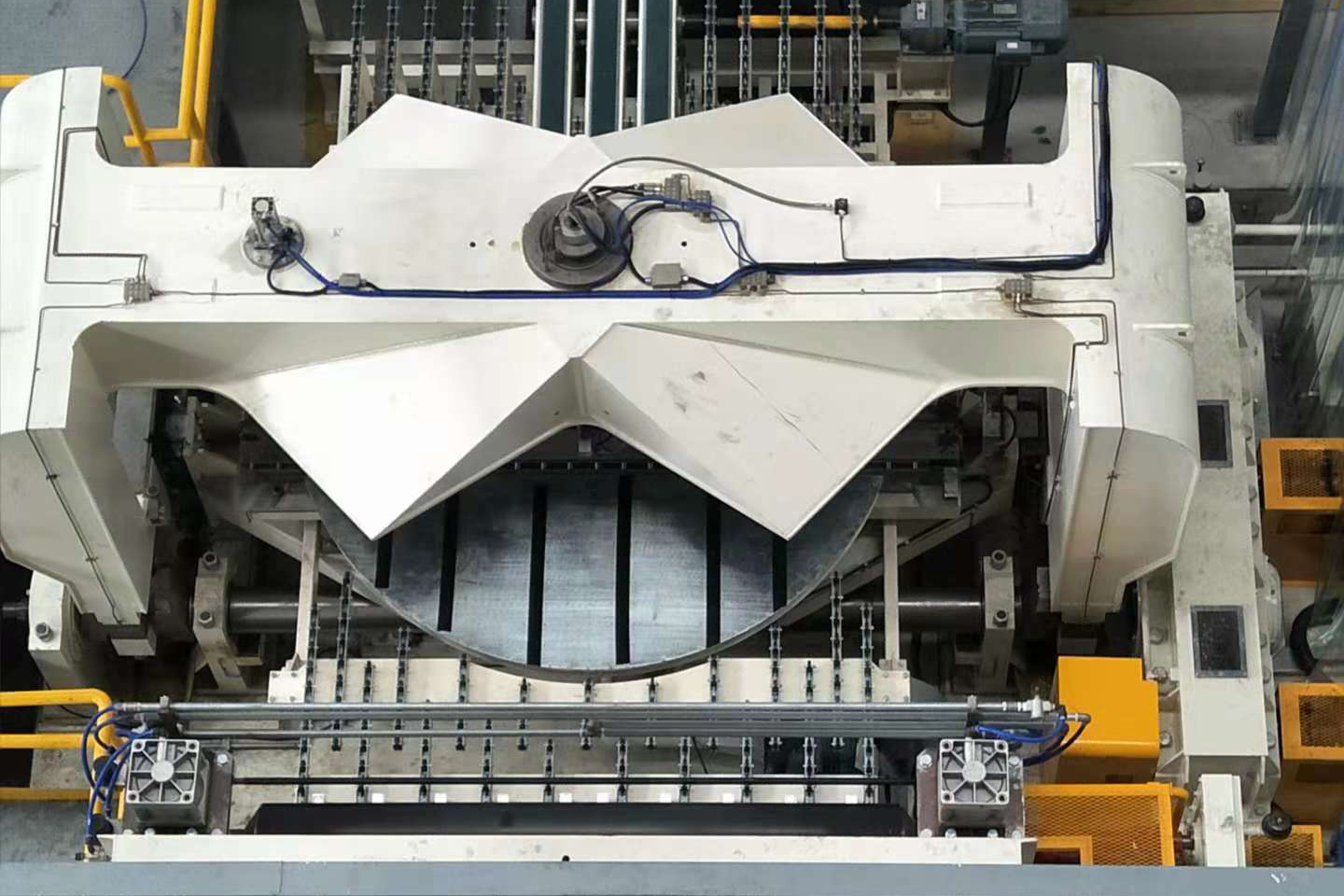

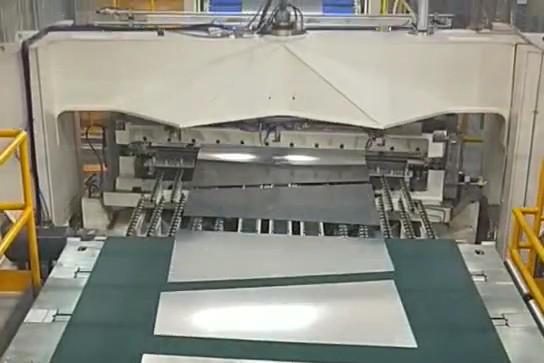

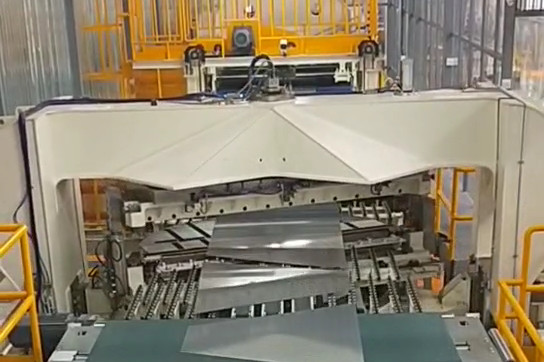

The Rotary Oscillating Shear Line is a state-of-the-art sheet cutting system designed for continuous, high-speed operation. Unlike traditional stop-and-go shearing methods, this system employs a cutting tool mounted on a rotating turret that both rotates and oscillates in perfect synchronization with the moving sheet. After each cut, the tool automatically returns to its original position, allowing the material to move without interruption. This continuous motion dramatically improves production efficiency, delivering speeds of up to 80 meters per minute while maintaining exceptional cutting precision.

Key Features

Continuous Shearing: The synchronized rotation and oscillation eliminate the need to stop the material during cutting, ensuring uninterrupted production.

High Speed: Typical production speed reaches 80 m/min, significantly higher than conventional shearing systems.

Smooth, Low-Impact Cutting: The combined motion reduces mechanical shock and vibration, extending the life of the equipment and protecting sheet surface quality.

Wide Material Compatibility: Capable of handling high-speed steel (HSS), cold rolled steel (CRS), hot rolled steel (HRS), and aluminum.

Burr-Free Finish: Precision shearing ensures smooth edges, minimizing or even eliminating secondary trimming operations.

Durability & Reduced Wear: Smooth cutting motion lowers stress on cutting tools and mechanical transmission components.

Technical Specifications

Material Thickness Range: 0.2 – 4.0 mm

Maximum Speed: 80 m/min

Compatible Materials: HSS, CRS, HRS, Aluminum

Shear Type: Rotary Oscillating or Stop Type

Integration Capability: Fully compatible with high-speed levelers, automatic stackers, laminating units, dust removal systems, and oiling machines

Automation Support: Automatic length setting and tool change features reduce manual intervention and downtime

Product Instructions

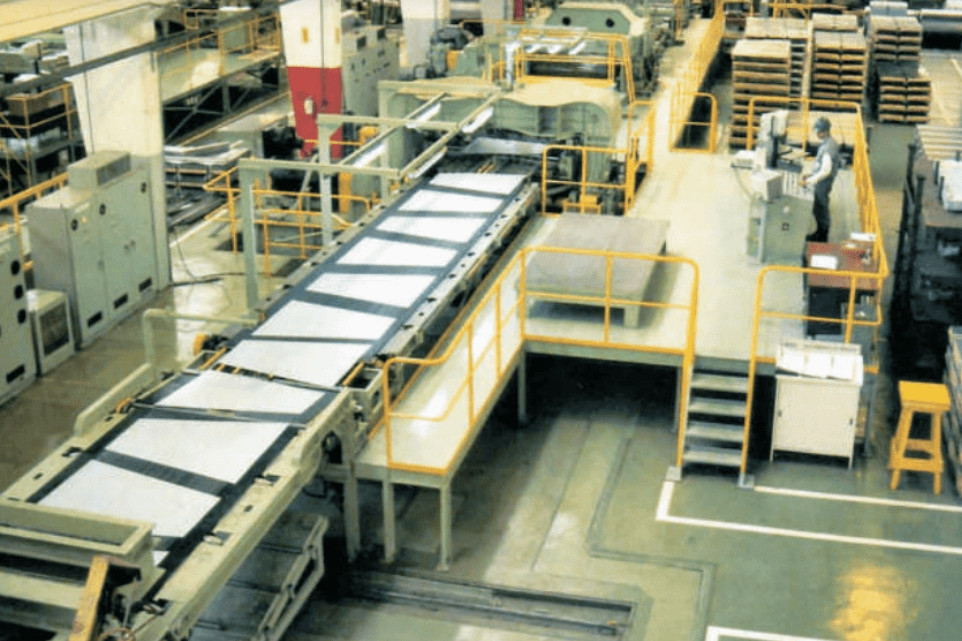

The Rotary Oscillating Shear Line operates by continuously feeding sheet material into the shearing zone, where the turret-mounted tool matches the sheet’s linear motion through precise rotation and oscillation. Once a cut is made, the tool swiftly resets without stopping material movement. The system can be easily integrated into existing processing lines, combining with leveling, stacking, laminating, and coating equipment to form a fully automated production workflow. Operators can quickly set cutting lengths, switch tools, and monitor performance via a user-friendly control interface.

Applications & Industries

This technology is ideal for industries requiring high-volume, precision sheet cutting, such as:

Automotive Manufacturing – for body panels, chassis components, and structural parts

Appliance Production – for refrigerator panels, washing machine housings, and oven enclosures

Construction Materials – for roofing sheets, wall panels, and cladding

Electrical & Electronics – for enclosures, control panels, and heat sinks

Metal Service Centers – for coil-to-sheet processing and custom order fulfillment

Target Customers

Rotary Oscillating Shear Lines are particularly suited for manufacturers and processors who demand:

High-speed, high-accuracy cutting

Continuous production with minimal downtime

Reduced maintenance costs and extended equipment lifespan

Capability to work with a wide range of metals and thicknesses

Integration into automated, high-volume production environments
