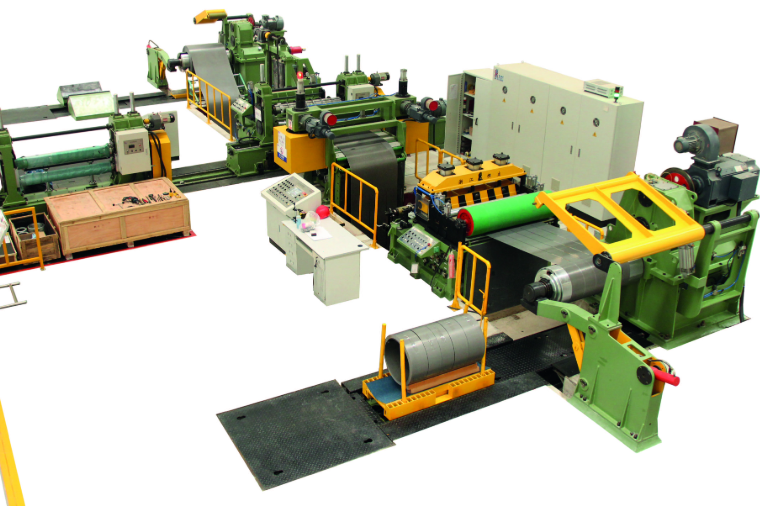

Automation high speed slitting line machine

Product Description

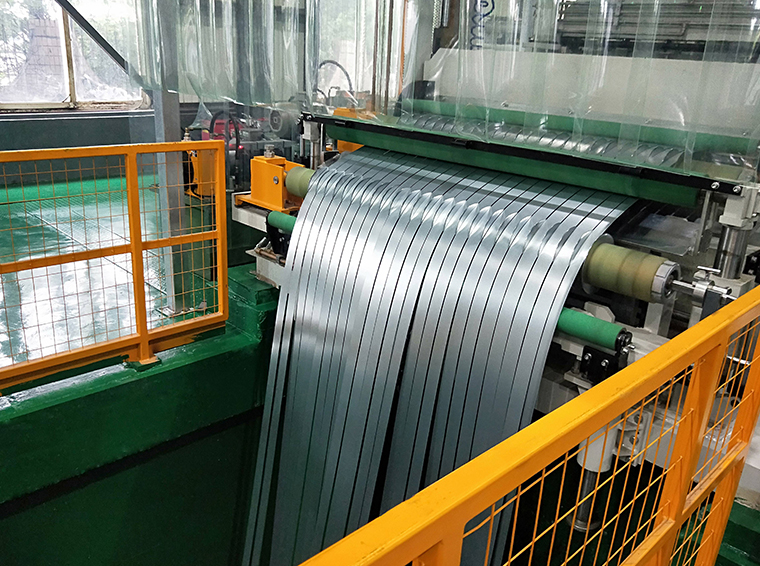

The automated high-speed slitting line is a sophisticated metal processing system designed to convert wide metal coils into narrow, precision-cut strips with exceptional speed and accuracy. Its main function is to slit coils made of cold-rolled steel (CRS), hot-rolled steel (HRS), stainless steel, aluminum, or coated metals into strips of precise width for downstream applications. By combining high-speed automation with advanced control systems, the line increases productivity, reduces material waste, and ensures consistent strip quality. This equipment is ideal for industries where precise strip dimensions, edge quality, and high throughput are essential, including automotive, appliance manufacturing, construction, and industrial machinery sectors.

Key Features and Advantages

Automated high-speed slitting lines incorporate multiple advanced features to enhance efficiency, precision, and reliability. These systems include an automated decoiler, high-precision slitting knives, tension-controlled feeding, and synchronized recoilers. The line can handle coil widths typically up to 2,500 mm and sheet thicknesses from 0.2 mm to 4.0 mm, while operating speeds can reach up to 80 meters per minute depending on material and thickness. Adjustable slitting knives and oscillating shear systems ensure clean, burr-free edges, which reduces downstream processing issues. Magnetic or mechanical recoiling systems prevent strip deformation, while fully integrated control systems allow operators to monitor and adjust parameters in real time. Safety features, including emergency stops and protective guarding, enhance operator safety while maintaining production efficiency.

Technical Specifications

High-speed slitting lines are designed to accommodate a wide range of production demands. Coil widths range from 300 mm to 2,500 mm, with thicknesses between 0.2 mm and 4.0 mm. The system can produce multiple narrow strips from a single coil, maintaining precise width tolerances to ensure uniformity. Decoilers are capable of handling heavy coils, while tension control systems maintain proper alignment and strip flatness throughout the process. Recoilers are designed for fast, precise winding, minimizing handling damage and ensuring smooth downstream operations. The line is engineered for continuous high-volume production, capable of delivering consistent quality even during long operating periods, making it suitable for both small and large-scale industrial applications.
